"This beautifully detailed design is remarkable for its ability on a central quad to combine green lawn space with rain gardens and systems, which are incredibly hard to merge, and it does it in a comfortable manner. . . It’s going to maintain well. They’ve allowed for tree growth and brought attention to it."- 2014 Awards Jury

“這個設計完美巧妙，構思細膩，因?yàn)樗�能夠把中央的一處方形地塊中綠色草坪空間和雨水花園系統完美結合起來，這些事物是很難融合到一起的，而該設計卻做到了，并且舒適自然，同時綠地環境得到了維護。設計者考慮到了植物的生長并且對此也給予了足夠的重視。”- 2014年獎項評審團

ASLA
Philadelphia, PA | Andropogon Associates Ltd.  | Client: University of Pennsylvania

Shoemaker Green is a new, 2.75-acre public green at the heart of the University of Pennsylvania’s historic athletics precinct. The project has transformed an underused and under-appreciated corner of the campus into a harmonious merger of people and place, of history and emergence, and of function with high performance. The ecological sophistication and holistic approach to site design is evident in the final form of the work: a profoundly beautiful and fitting campus space.

休梅克綠地是一處新近落成，占地2.75英畝的公共綠地，位于賓夕法尼亞大學歷史上著名田徑運動場中心區。該項目將校園中一片未得到充分利用的荒廢角落改造成了一塊高效多功能的綠地，在這里，人與自然、歷史與當代和諧完美的融會到一起。在該綠地竣工之后，其設計的生態復雜性和整體分析彰顯無遺：美麗動人，心曠神怡的校園空間。

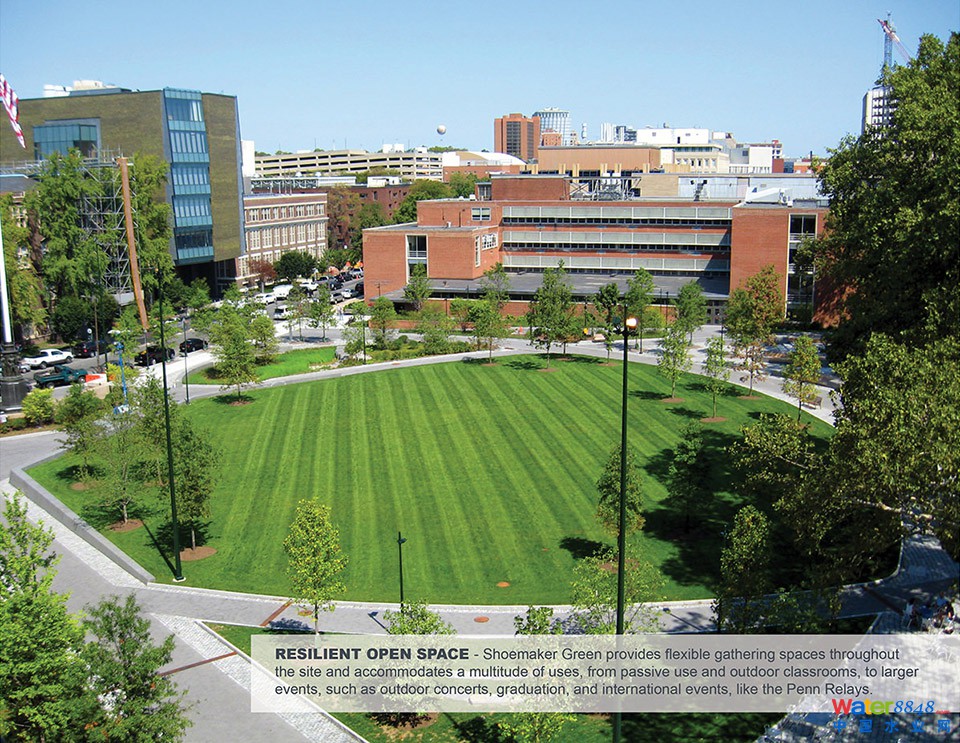

↑ Resilient Open Space
Shoemaker Green provides flexible gathering spaces throughout the site and accommodates a multitude of uses, from passive use and outdoor classrooms, to larger events, such as outdoor concerts, graduation, and international events, like the Penn Relays.
彈性靈活的開放空間
休梅克綠地橫貫校園中央，可給人們提供靈活的多功能的聚集空間：可供人們能在此休閑和用作戶外教學場地，也可在此舉辦大型活動，比如：戶外音樂會、畢業典禮及賓州接力賽等國際性比賽
Photo Credit: Barrett Doherty and Andropogon



項目簡介

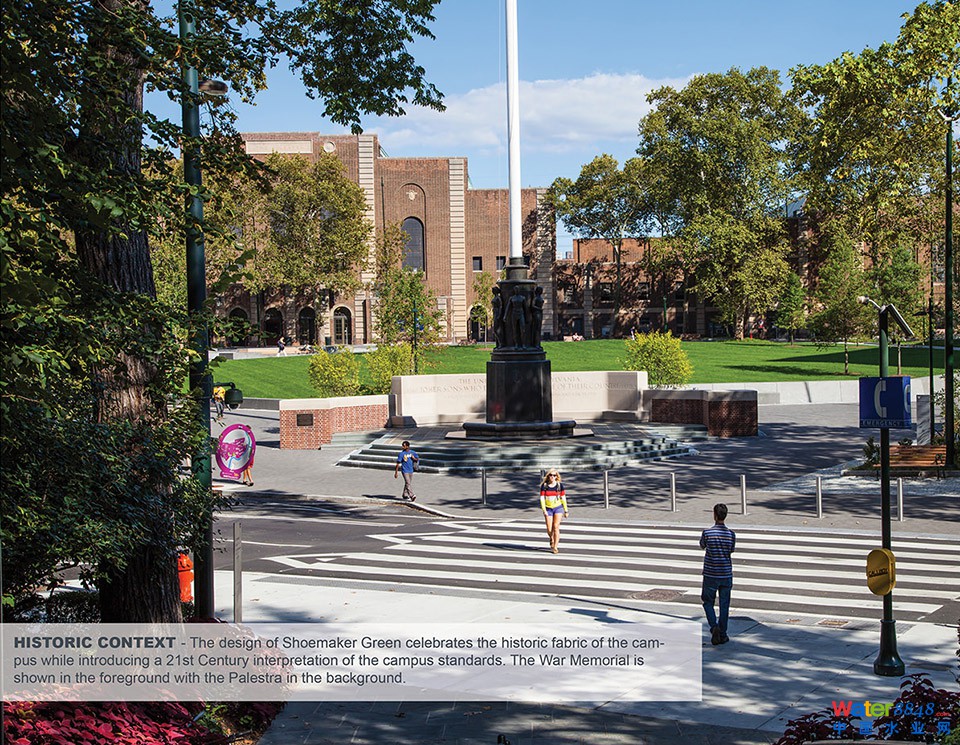

休梅克綠地總共占地2.75英畝，緊靠第33街東面，位于沃爾納特街與斯普魯斯兩條街道之間。該項目將荒廢已久的網球場和幾條狹窄的通道以及具有歷史意義的戰爭紀念碑景點組成的場地改造為費城西部地區的公共綠化空間設施。該設計借鑒了賓夕法尼亞大學傳統校園綠地的特點，營造出一種似曾相識的視覺，同時將緊鄰的各建筑入口、人行道、路緣石和陡峭斜坡階梯進行了整合。整塊綠地是賓夕法尼亞大學東西方向主體步行系統的重要組成部分，它將校園中心區與田徑運動場連接起來，同時也是賓夕法尼亞大學校區向東擴建的重點區域。在該場地的邊緣是賓夕法尼亞大學最具標志性的體育設施：菲爾德豪斯體育場和富蘭克林運動場，休梅克綠地成為了這兩大歷史性建筑設施的前庭空間。該項目為可持續性校園設計樹立了標桿，同時獲得了可持續場地倡議組織的二星榮譽。

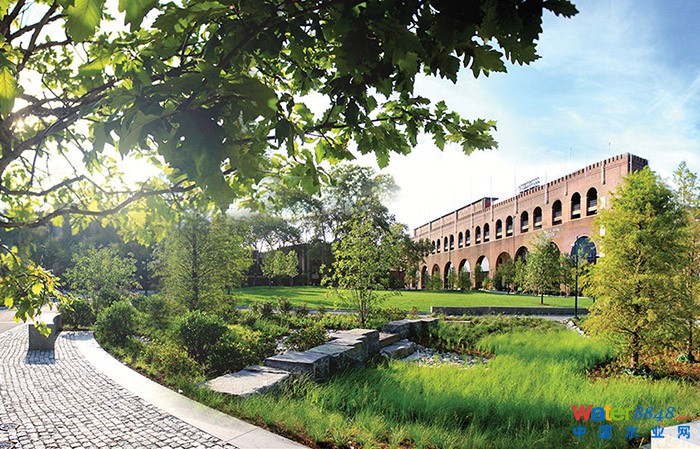

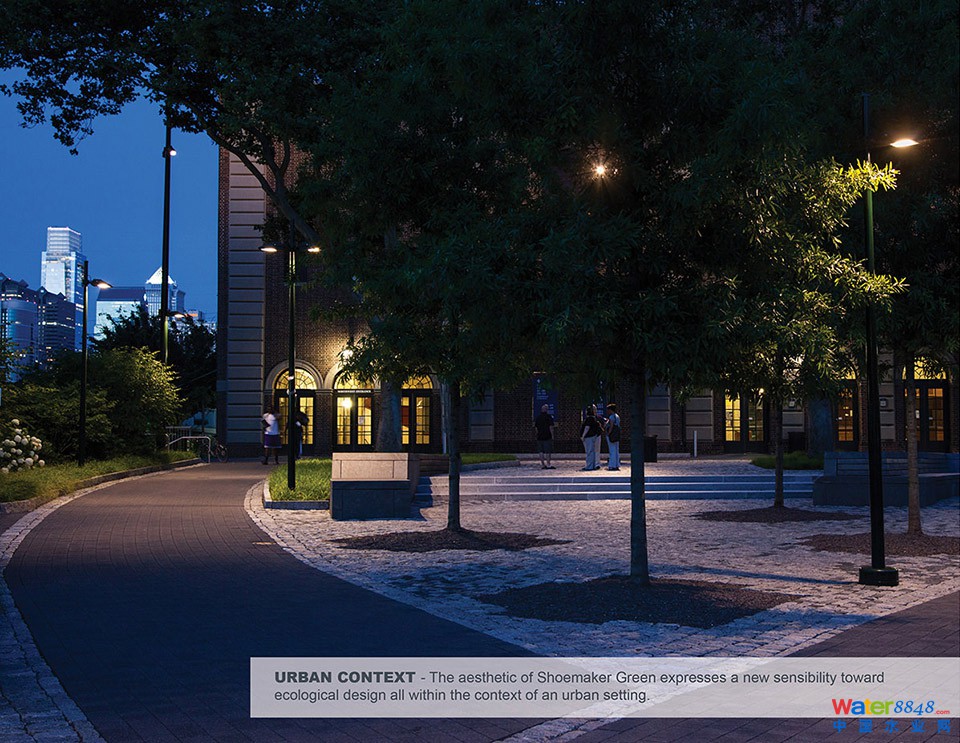

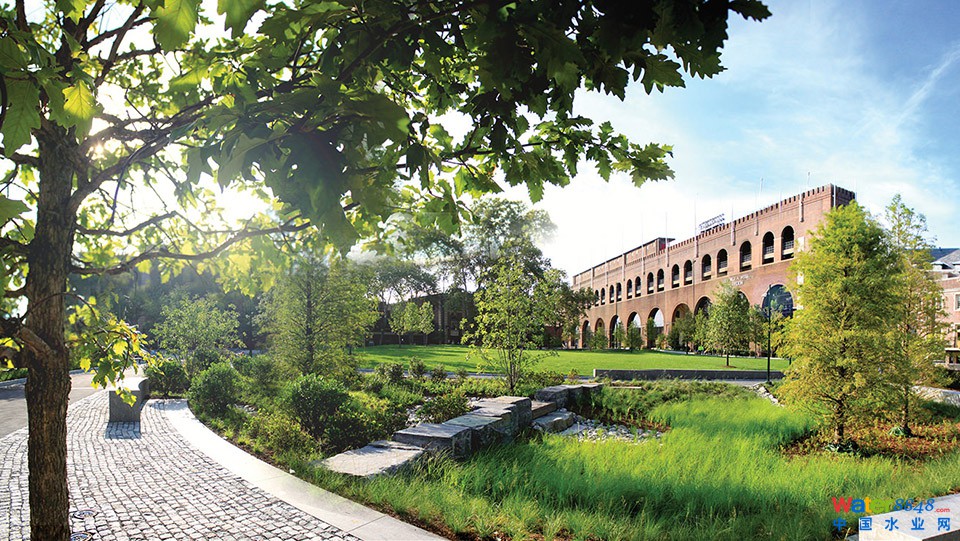

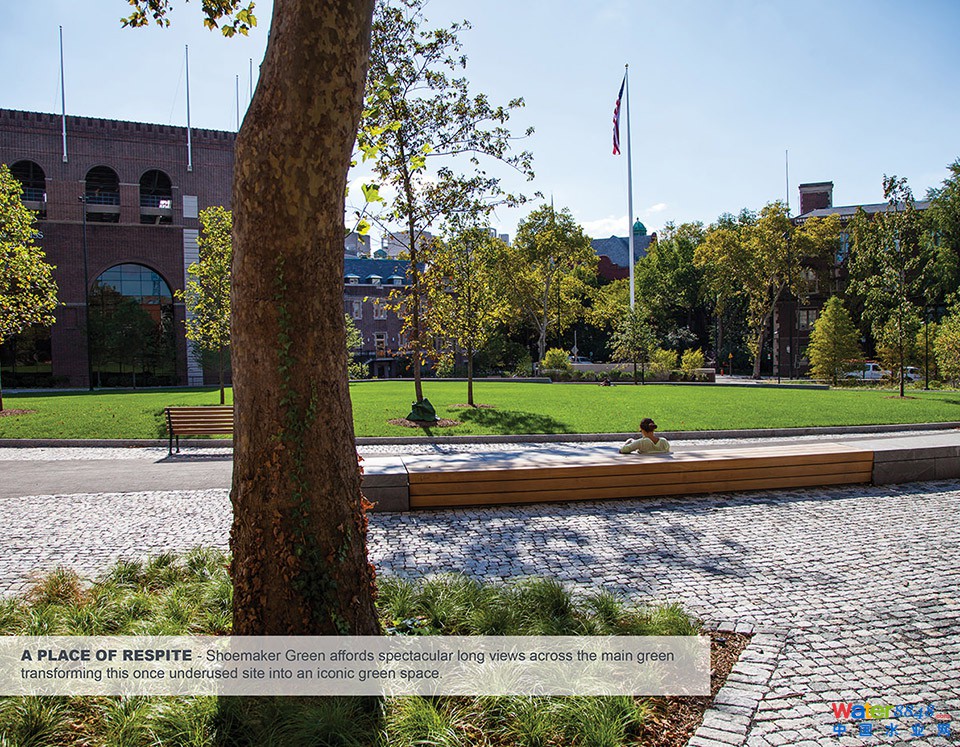

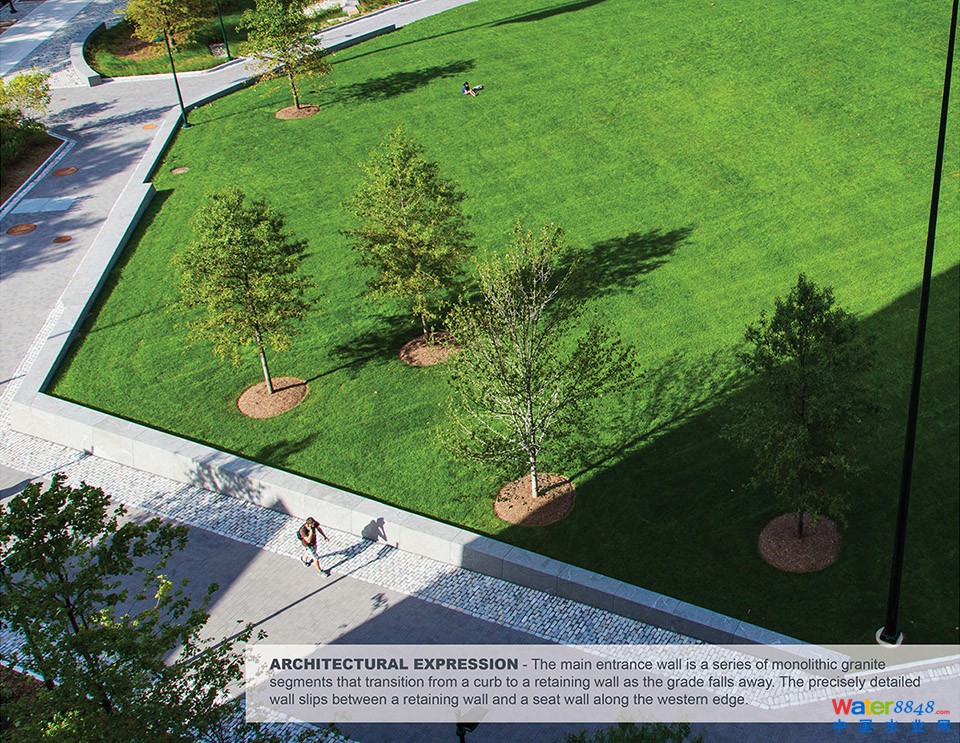

該綠地由中央半圓形草坪和一個大型雨水花園組成，其邊緣是由精細石材修筑而成的擋土墻和幾條雅致曲折的人行道所環繞。通過對賓夕法尼亞大學傳統景觀材料及設計方法的延用，這塊綠地自然地融入到原有校園環境系統中，使之具有現代感，并且實現了有效擴展。大型多層花崗巖坐墻為綠地提供了坐歇設施，綠地上種植著幾株刺槐樹，為在此休息的人們平添了幾分舒適與愜意。其間擺放地咖啡桌椅和具有賓夕法尼亞大學校園特色休閑長椅，為人們提供了一個靈活的多功能公共聚集空間。高效節能的照明設計為休梅克綠地的夜間安全提供了保障，在這些柔和燈光的照射下，校園中的歷史建筑別有一番韻味，提升了整個綠地空間的文化及歷史內含。



場地分析

在項目設計之初，設計師們便對項目場地狀況進行了深入地評估，以對整個場地空間的歷史背景、環境現狀、生態結構以及功能性做出系統的了解。場地的設計對綠地使用者需求與喜好非常在意，以賓夕法尼亞人長期以來對于自然的欣賞和他們的需求及偏好為出發點。因而，一個由賓夕法尼亞大學代表、費城相關機構代表和設計團隊代表組成的多方利益團體應運而生，對整個項目設計過程進行嚴格監督和審查，最終形成了全面完美的設計方案。



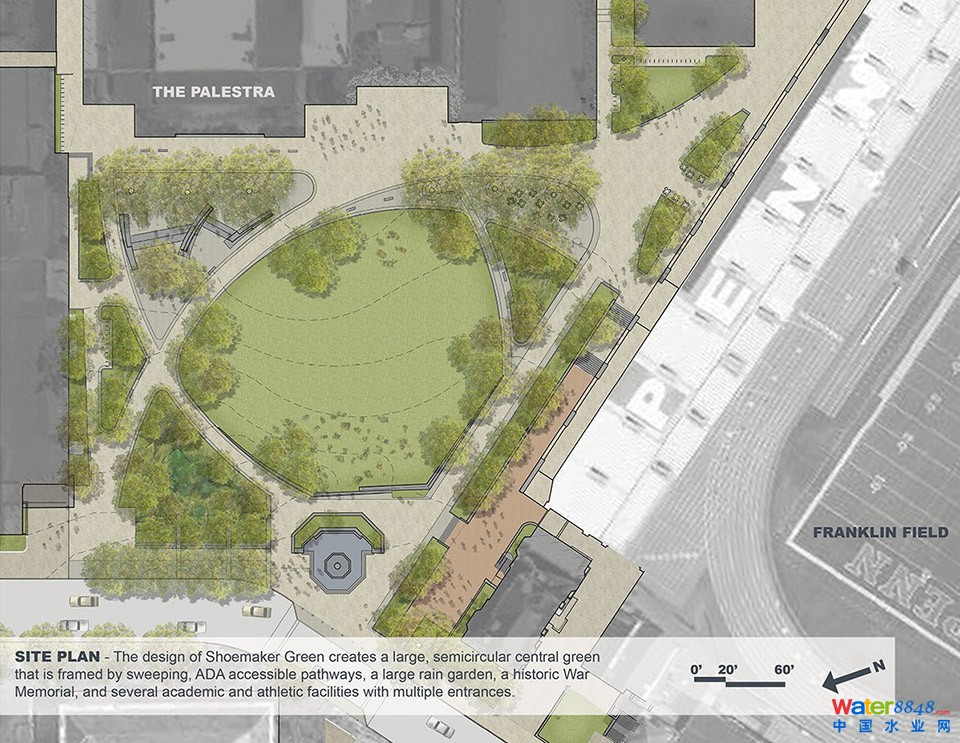

場地規劃

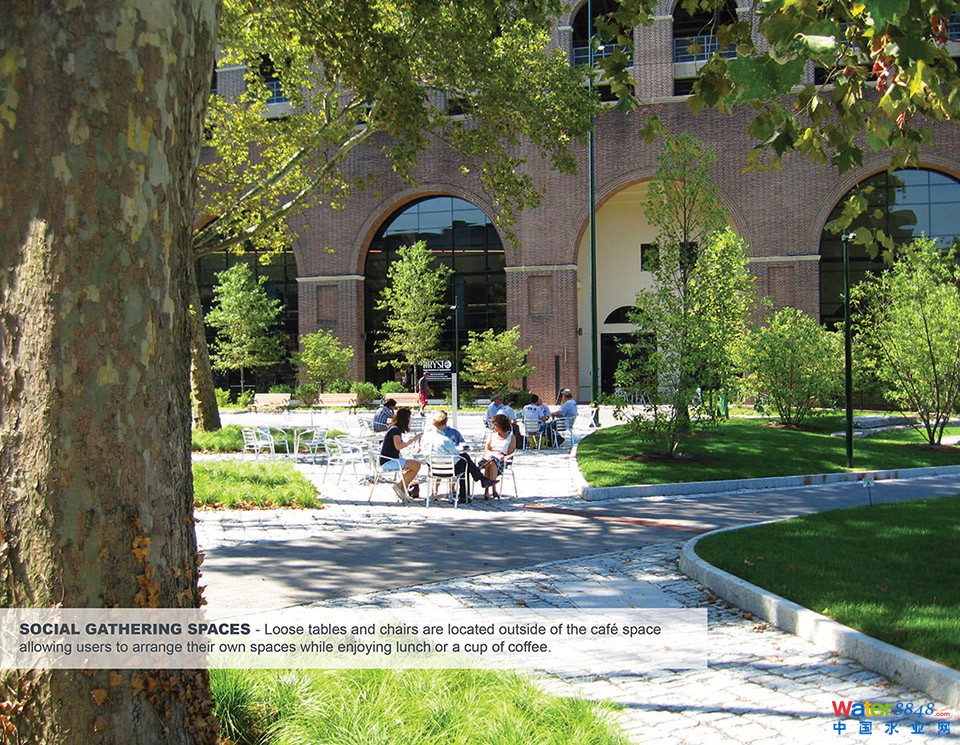

休梅克綠地主要是迎合休閑娛樂需求，并能夠同時容納多種校園活動的舉辦。作為校園田徑運動場核心區的全新開放公共空間，休梅克綠地還需具備諸多前所未有的綜合性功用。綠地空間投入使用后，可支持各種規模的活動的舉辦，包括一些重大的校內活動，比如：畢業典禮、大型集會以及賓州接力賽等國際性比賽，同時也可作為戶外課堂、播放夜晚露天電影、舉辦音樂會和展覽會等。



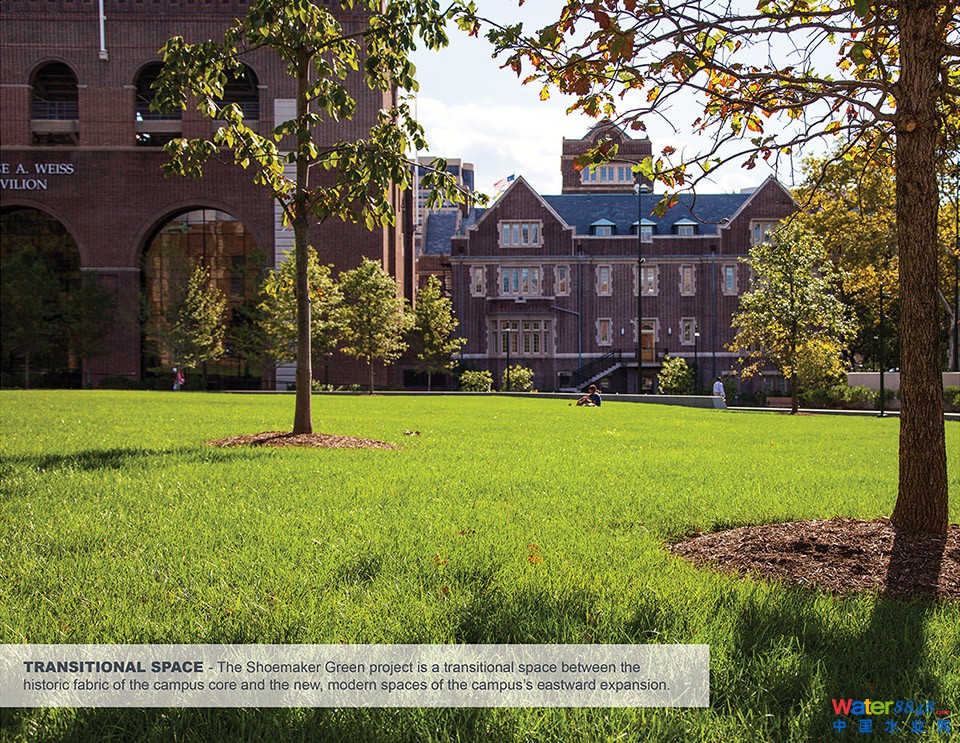

過渡空間

在斯庫基爾河沿岸賓夕法尼亞大學校園區域連接總體規劃中，休梅克綠地成為了校園中央古老建筑結構與更為現代的新型時尚開放空間之間的一個過渡。該綠地繼續秉承原有的刺槐/史密斯步行道的設計特點，并同時吸納了賓夕法尼亞大學傳統的校園綠化景觀元素，同時融入了新的設計元素，這些都反映了可持續發展及生態景觀設計的重要性。



系統化的設計思路

休梅克綠地創造了一個多功能的校園景觀空間，它不僅提供了良好的生態系統服務功能，而且還滿足了賓夕法尼亞大學提出的相關計劃要求。該綠地的功能化運行如同人的腎臟，通過一個綜合性景觀系統，收集了整個場地95%的雨水量，對雨水進行傳送、過濾及存儲，之后可以用于灌溉。其余的水源需求則依靠毗鄰建筑的屋頂雨水徑流及空調冷凝水。

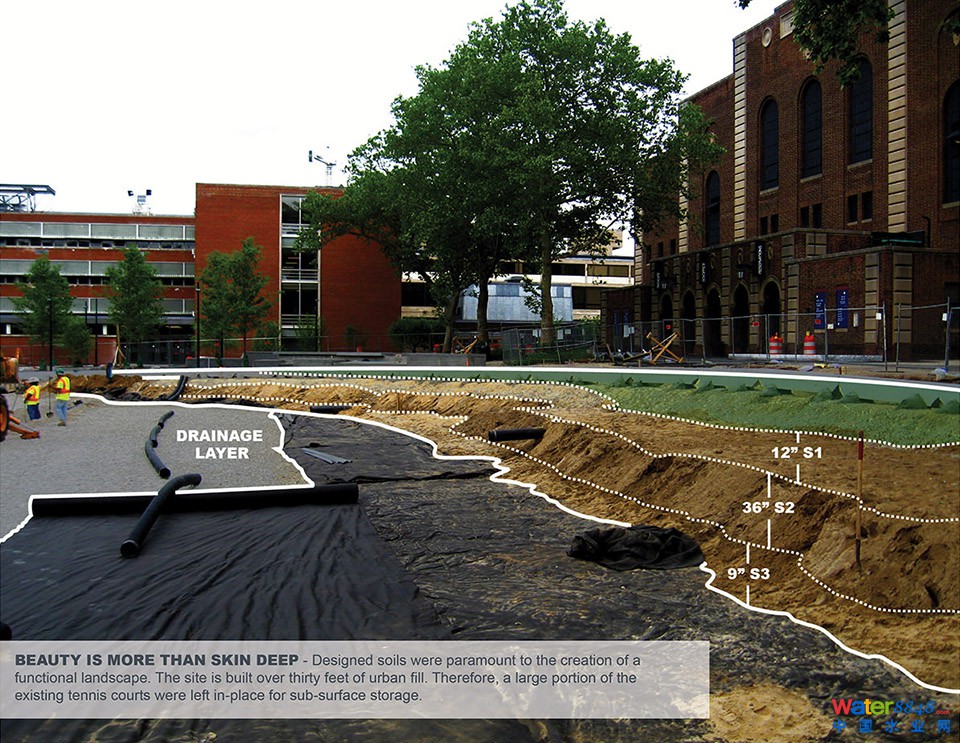

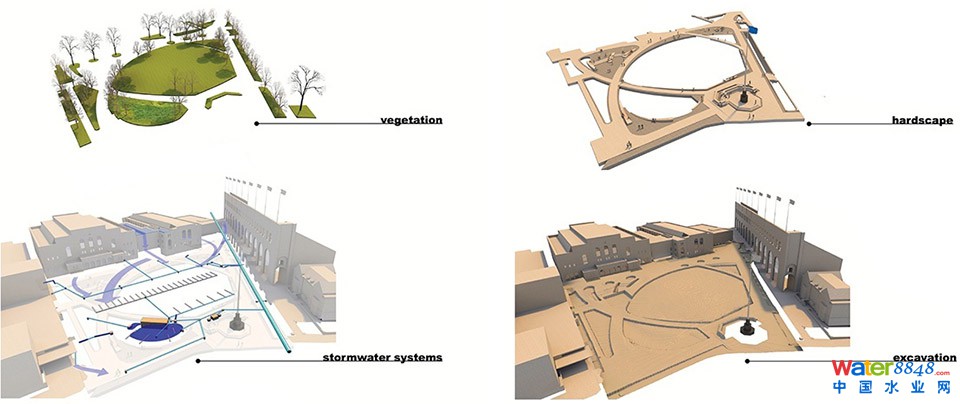

休梅克綠地的設計源于一種系統化的設計思路，即將自然生態系統（土壤、植物、昆蟲、鳥類和人類）與人工營造的系統（建筑構件和基礎設施）整合成為一個功能性的整體。該設計采取雙管齊下的有效方法來管理場地內的雨水。其首要策略就是將雨水徑流傳送至一個包含經過設計的土壤層和多種原生植物的大型雙層雨水花園中，目的是對大量的雨水進行治理、過濾、蓄存，然后最終排出用于灌溉；另一個方法就是從該場地及相鄰建筑中收集雨水徑流和空調冷凝水，并將其釋放到主體綠地下方的土壤層中。這些水源在經過土壤層時被有效過濾，然后滲入到綠地以下幾英尺深的大型蓄水臺中。原有網球場中的很大一部分得以留存，并置于現有綠地下方，以支持地下循環蓄水臺的運轉。沒有流經土壤層和原生植物的多余水資源經由地下排水系統采集，之后被傳送到另一個大型蓄水池中進行蓄存，并得以循環再利用。一旦整個系統處于滿負荷運作狀態，則大量雨水將溢流入原有的市政下水道設施中，以避免嚴重積水。

在施工過程中，所有之前用過的材料都得以充分回收或升級再造。通過培訓項目承包商們了解了安裝非傳統雨水基礎設施的相應方法；確切地說，他們是了解了雨水處理設施與土壤及植栽材料協同作用的重要性。具體的施工協調和測序?qū)τ谠擁?xiàng)目成功施行是十分重要的。費城水利部門和可持續場地倡議組織都對該項目進行了嚴格檢測，并要求對項目文檔進行詳盡編制。



場地監測

休梅克綠地已成為罕見的綠色基礎設施典范，究其原因，它是一個經過嚴格檢測的高效能景觀項目，可以將水源進行回收、過濾，并有效地將清潔的水資源重新回流到環境中。一份歷時五年的監測規劃的制定，最終使得景觀建筑師、賓夕法尼亞大學教職員工及學生，以及廣大公眾都有機會共同參與到這一真正意義上的“生態景觀系統”中去。該項目的景觀設計師們與賓夕法尼亞大學教職員工及學生代表共同對以下幾個方面做了積極而深入的監測——項目場地進出雨水的數量和質量；對項目系統程式化運作起到支持性作用的土壤的生物性質、多樣性、演變過程、碳穩固性、養分循環以及土質本身；植栽材料的健康狀況（即生長與根部發育狀況）及其對土壤水分的蒸散量；灌溉水源獲取及再利用系統的運行性能及效率；人們對該綠地使用頻率的跟蹤監測；生態關聯性和人們對于綠地景觀的感知與體驗——從而將促成賓夕法尼亞大學關于綠化環境維系方面的長久性校規的出臺。對于項目場地性能的精心設計與持續性監測將有助于未來大學校園的景觀設計，同時也有助于對美國國家可持續性景觀設計指南和建筑規范的修訂產生積極的影響。
